Fiber optic pigtails are often difficult to see because the bare fiber end is extremely thin, usually unjacketed, and typically installed inside protective enclosures or splice trays.

Physical Characteristics

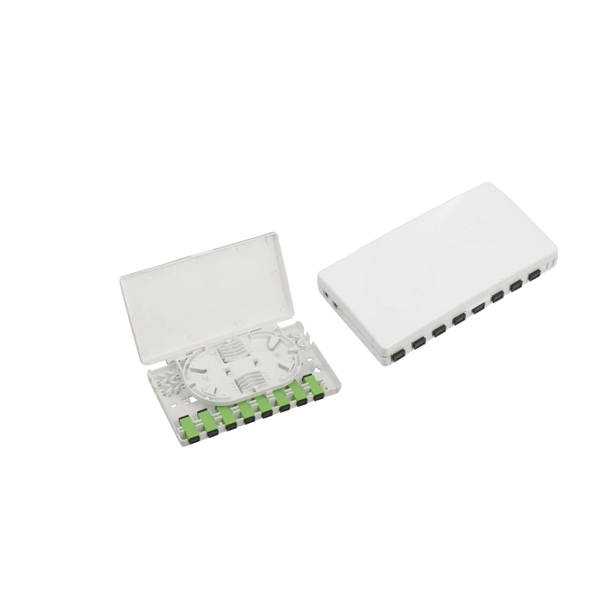

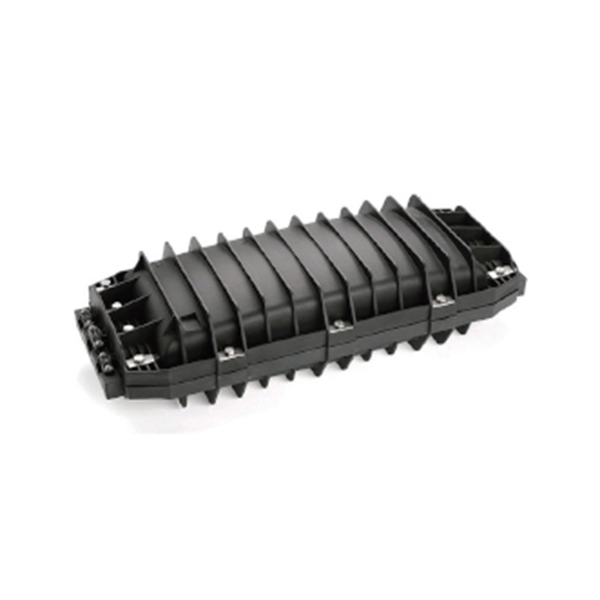

The bare fiber in a pigtail is typically 0.25 mm in diameter for the glass core and may have only a 0.9 mm tight-buffered coating, making it extremely thin and nearly transparent to the naked eye . Unlike patch cords, which have thicker, fully jacketed cables for durability, pigtails are designed for permanent splicing inside ODFs, terminal boxes, or splice closures, where the fiber is protected and not exposed for direct handling .

Installation Environment

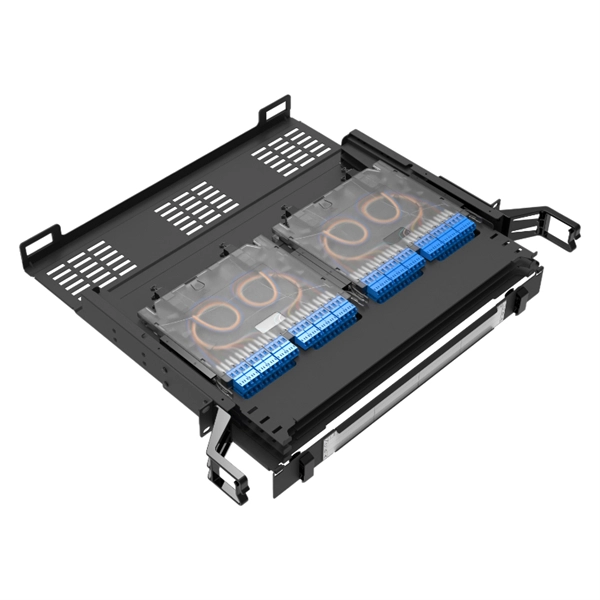

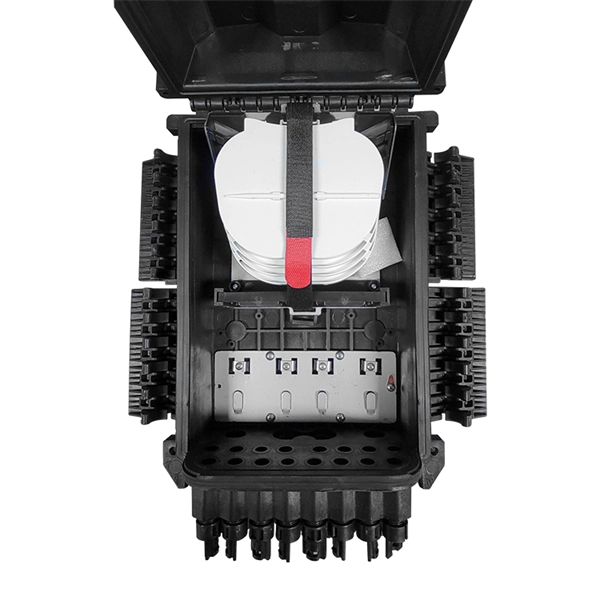

Fiber pigtails are usually spliced inside enclosures, such as optical distribution frames or splice trays, which conceal the bare fiber to prevent damage and maintain signal integrity . The fiber is often routed alongside other fibers, making it blend into the background, and the protective trays or boxes further obscure visibility. This is why, even when present, the fiber may not be immediately noticeable.

Optical Properties

The glass fiber itself is transparent and reflective, so under normal lighting conditions, it can be very hard to see. Only under specific lighting or with specialized tools, such as a fiber inspection scope or visual fault locator, can the fiber be clearly observed .

Summary

In short, the fiber optic pigtail is not easily visible because:

• The bare fiber is extremely thin and transparent.
• It is protected inside enclosures or splice trays.
• Its optical properties make it blend with the surroundings.
• Unlike patch cords, it is not designed for direct handling or visibility outside the splicing environment . Understanding these factors helps explain why, even when a pigtail is installed correctly, it may not be immediately apparent to the eye.
