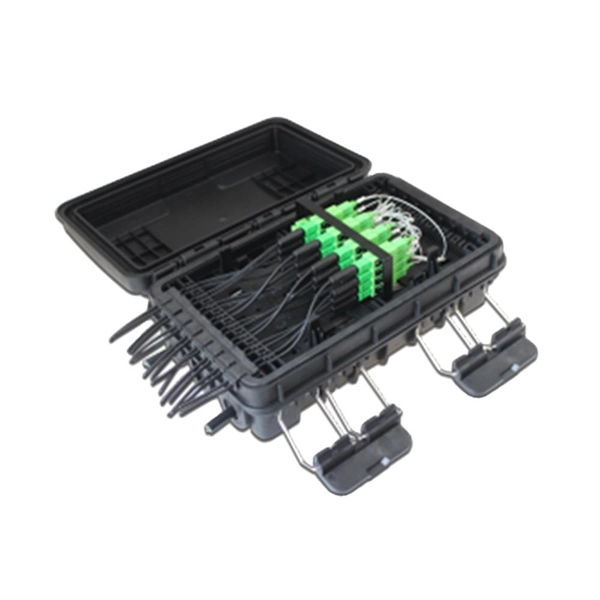

Effective on-site inspection of fiber optic junction boxes combines visual inspection, insertion loss testing, OTDR analysis, and adherence to IEC standards to ensure reliable network performance.

Visual Inspection and Cleaning

Before any optical measurements, each fiber connector end face should be inspected using a video microscope to detect contamination, scratches, cracks, or endface defects that can degrade performance . If contamination is detected, connectors must be cleaned using isopropanol wipes or click cleaners appropriate for the ferrule diameter. Automated inspection software aligned with IEC 61300-3-35 can provide pass/fail results and a documentable record of connector quality .

Insertion Loss Testing

Insertion loss testing measures the total optical loss across the junction box and connected fibers. This confirms that the fiber link meets the design loss budget and identifies any excessive attenuation at splices or connectors . Testing should be performed at each module or port to allow granular fault localization and ensure that individual connections meet specifications .

OTDR Measurements

Optical Time-Domain Reflectometry (OTDR) is essential for detecting events along the fiber, such as splices, bends, or breaks. OTDR testing is particularly important for long-distance or outdoor feeder cables and allows technicians to pinpoint faults within the junction box or along the connected fibers . Each suspicious module can be tested individually to simplify troubleshooting.

Continuity and Polarity Checks

Continuity testing with a visual fault locator (VFL) ensures that each fiber core is intact and correctly mapped. Polarity verification is critical in modular junction boxes to prevent misconnection errors, which can occur due to flexible configurations .

Environmental and Installation Checks

The installation environment must meet specifications for temperature, humidity, and cleanliness. Air-conditioned technical rooms should maintain stable conditions to prevent performance degradation. Incoming inspection of delivered components, including verification against quality certificates and random checks, helps detect transport damage or deviations before installation .

Documentation and Compliance

All inspection results, including visual inspection, insertion loss, OTDR traces, and continuity tests, should be documented for acceptance and quality assurance. Compliance with IEC 61300-3-35 ensures standardized endface quality and reliable network performance throughout the fiber optic system lifecycle . Automated inspection tools can provide repeatable, reliable records that manual inspection cannot guarantee.

Summary

On-site quality inspection of fiber optic junction boxes involves a systematic, multi-step approach:

1. Visual inspection and cleaning of connectors.
2. Insertion loss testing for each module or port.
3. OTDR measurements to locate faults along fibers.
4. Continuity and polarity verification.
5. Environmental checks and incoming component inspection.
6. Documentation and IEC standard compliance for traceable quality assurance. This structured approach ensures initial performance, long-term stability, and reliable operation of fiber optic networks in critical applications such as data centers, telecom infrastructure, and public utilities .
