KTV electrical distribution boxes typically range from compact wall-mounted units around 200×200×120 mm to larger stage or floor-standing enclosures up to 800×600×300 mm, depending on application and internal wiring requirements.

Standard Wall-Mount and Freestanding Sizes

For general KTV or stage applications, electrical distribution boxes are available in various size families:

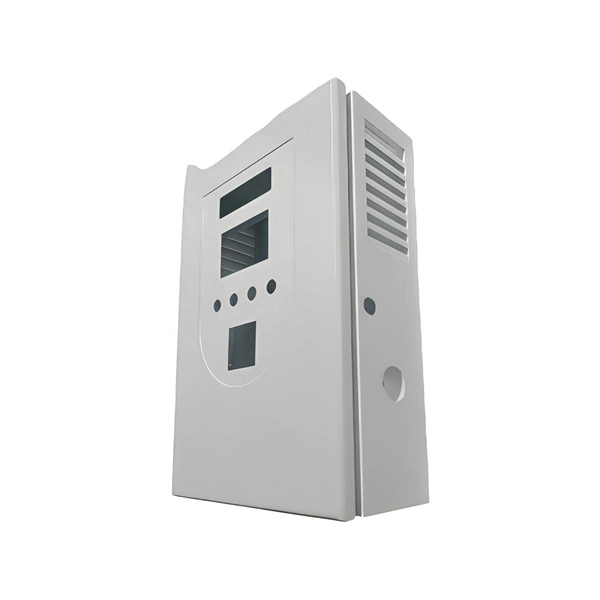

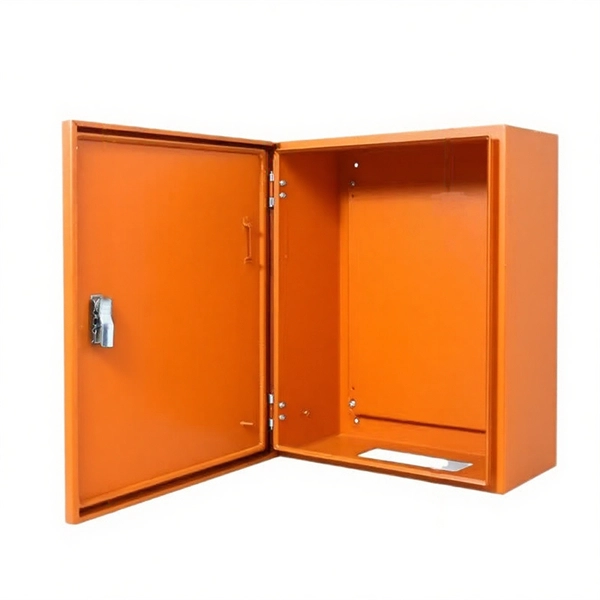

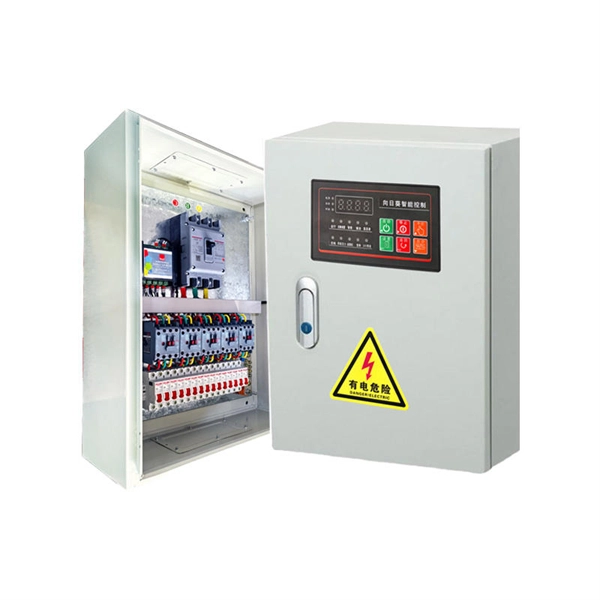

• Wall-mounted enclosures: Common external dimensions range from 200×200×120 mm up to 800×600×300 mm, suitable for low-power gear, terminals, and branch circuits .

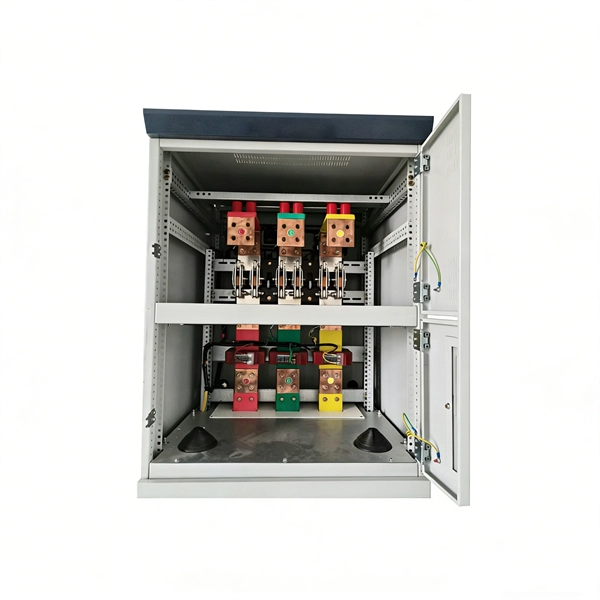

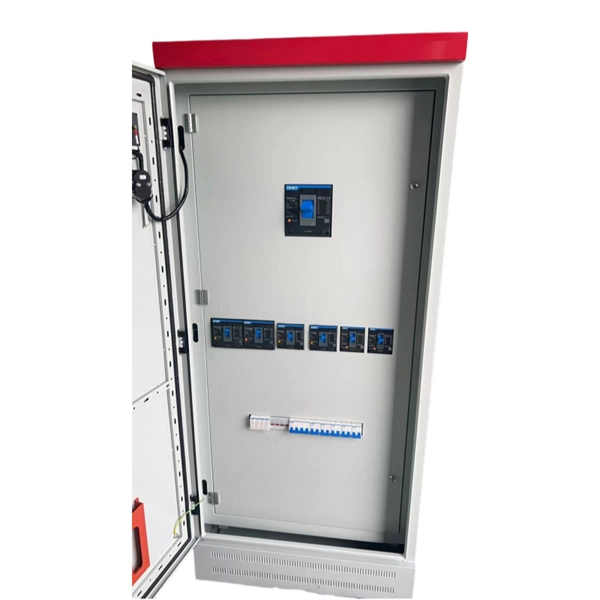

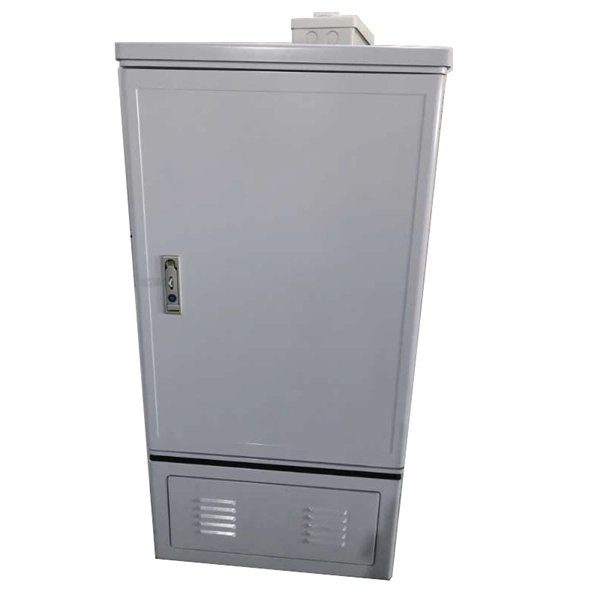

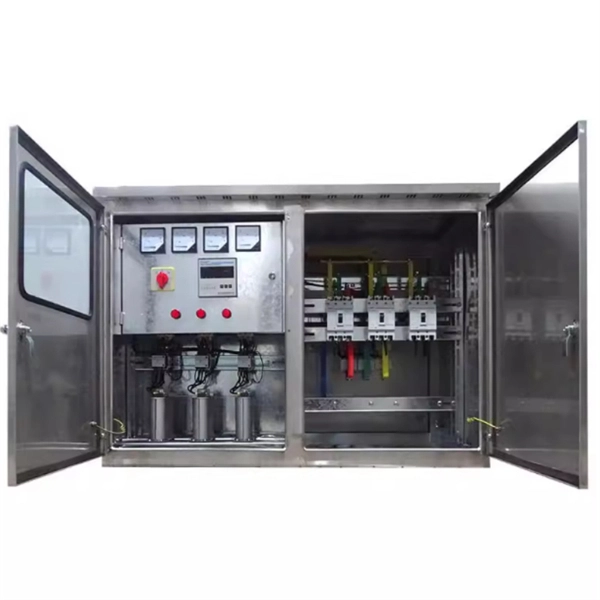

• Freestanding cabinets: Typically 1600–2200 mm in height, 600–1800 mm in width, and 300–600 mm in depth, designed for larger power distribution and control panels .
• Stage-specific KTV boxes: Compact, rugged units for DJ or stage lighting setups often feature customized enclosures with durable, waterproof casings and internal layouts optimized for multiple circuits and meters .

Depth and Internal Volume Considerations

• Depth is critical for accommodating multiple wires and devices. Standard depths range from 120 mm to 300 mm for wall-mounted units, while freestanding cabinets may exceed 600 mm .
• Internal volume must comply with wiring and safety standards, ensuring sufficient space for conductors, splicing, and future expansion .

Material and Protection

• KTV distribution boxes are often made from metal or high-quality plastic, with IP ratings for dust and water resistance, especially for stage or outdoor use .
• Rugged construction ensures impact resistance, high-temperature tolerance, and electrical insulation, which is essential for high-load or frequently reconfigured setups .

Practical Selection Tips

1. Assess load and circuit count: More circuits require deeper or larger boxes.
2. Plan for future expansion: Choose a box with extra internal volume to avoid overcrowding.
3. Check mounting type: Wall-mounted vs. freestanding affects footprint and accessibility.
4. Verify manufacturer specifications: Catalog dimensions often list external H×W×D; internal usable space is smaller due to wall thickness, gaskets, and mounting hardware . By selecting the appropriate size and type, KTV electrical distribution boxes can safely accommodate all wiring, switches, and protective devices while allowing for easy maintenance and upgrades.
