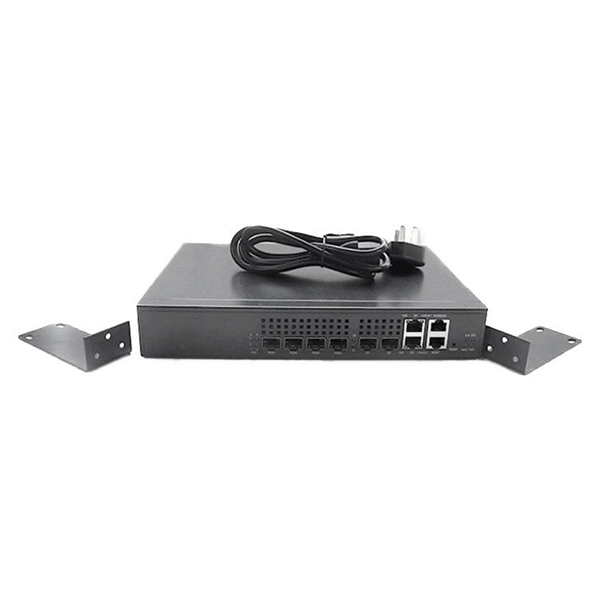

Fiber optic routing and switching devices manage and direct optical signals in fiber networks, enabling high-speed, low-latency, and secure data transmission.

Overview

Fiber optic routing and switching devices are essential components in optical communication systems, responsible for controlling the path of light signals within fiber networks. Unlike traditional electrical switches, these devices operate using light, which provides high bandwidth, low latency, and resistance to electromagnetic interference . They are widely used in telecommunications, data centers, enterprise networks, and optical sensing systems .

Types of Fiber Optic Switching Devices

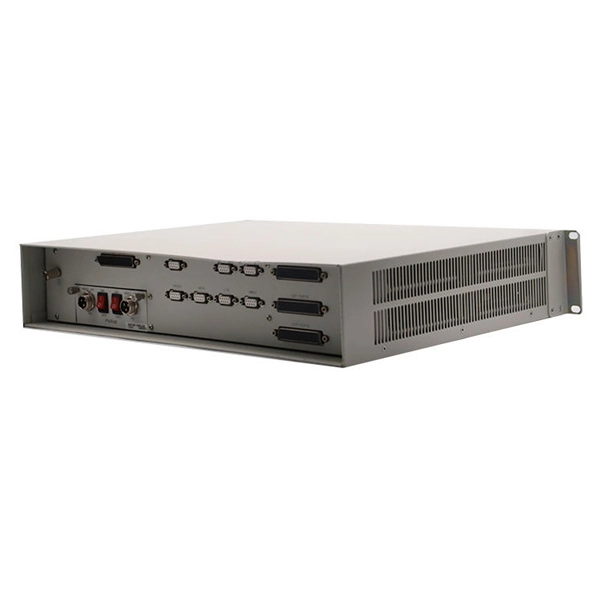

1. Fiber Optic Switches
   • Function: Direct or block optical signals between fibers.
   • Configurations: Simple on/off switches, 1×2, 2×2, or large matrix switches like 64×64 .
   • Mechanisms:
     • Mechanical/Optomechanical: Use mirrors, prisms, or shutters to redirect light; precise and reliable for network protection .
     • MEMS (Micro-Electro-Mechanical Systems): Utilize microscopic tilting mirrors or moving waveguides for fast, compact switching .
     • Solid-State: Employ electro-optic or liquid crystal materials for switching without moving parts, offering durability and minimal maintenance .
     • Thermo-Optic: Use temperature-sensitive materials to change refractive indices and redirect signals .
2. Multiplexers and Demultiplexers
   • Multiplexers (MUX): Combine multiple optical channels into a single fiber for efficient transmission .
   • Demultiplexers (DEMUX): Split a single fiber channel into multiple outputs for distribution .
   • Applications: Enable wavelength division multiplexing (WDM), increasing network capacity and efficiency .
3. Reconfigurable Optical Add/Drop Multiplexers (ROADM)
   • Function: Switch specific wavelength channels without affecting others, allowing dynamic network reconfiguration .
   • Use Case: Ideal for all-optical networks and flexible wavelength routing.

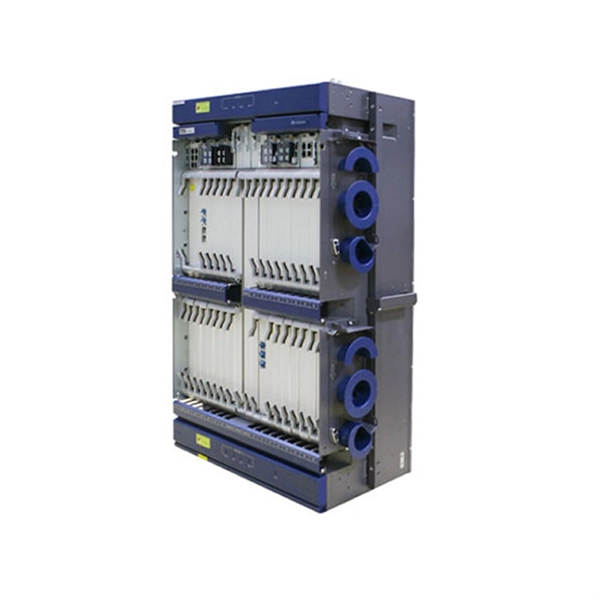

4. Optical Cross-Connects (OXC)
   • Function: Route optical signals between multiple fibers and wavelengths, supporting complex network topologies .

Key Performance Parameters

• Insertion Loss: Low loss is critical for maintaining signal strength; typical values are <1 dB for high-quality switches .
• Back Reflection: Low back reflection (<-55 dB) ensures minimal signal interference .
• Switching Speed: Varies by technology; MEMS and solid-state switches offer faster response than mechanical types .
• Durability: Mechanical switches can exceed 10 million cycles with proper design .
• Wavelength Range: Some switches support specific wavelength bands, especially in WDM systems .

Applications

• Telecommunications: Routing signals in long-haul and metro networks.
• Data Centers: High-speed traffic management and network protection.
• Optical Testing: Automated fiber testing and signal monitoring .
• Secure Communications: Difficult to tap without detection, enhancing data confidentiality .

Summary

Fiber optic routing and switching devices are critical for modern optical networks, providing flexible, high-speed, and reliable signal management. Selection depends on network requirements, switching speed, insertion loss, and wavelength handling, with options ranging from simple mechanical switches to advanced MEMS and solid-state devices. These technologies enable efficient, scalable, and secure optical communication systems .
