An optical module can fail if the total link attenuation exceeds its receiver sensitivity or falls outside its operational power range, typically measured in decibels (dB).

Understanding Optical Attenuation

Optical attenuation is the reduction of signal power as light travels through a fiber, measured in decibels (dB). It occurs due to intrinsic factors like absorption and scattering in the fiber, and extrinsic factors such as connector loss, splice loss, and bending of the fiber . Excessive attenuation reduces signal strength, increases bit error rates, and can ultimately cause the optical module to fail if the received power falls below the module's sensitivity threshold .

Module Sensitivity and Link Budget

Every optical module has a receiver sensitivity, which is the minimum optical power required for proper operation, and a maximum input power, beyond which the module can be damaged. The total link attenuation must be calculated considering:

• Fiber attenuation
• Connector and splice losses
• System margin (typically 3 dB to account for unpredictable losses like bending), The link budget formula is: Received Power = Transmit Power - Link Attenuation - System Margin If the received power drops below the module's sensitivity, the module may fail to detect the signal, causing communication errors or complete link failure .

Practical Example

For instance, an SFP10-10G-ZR module with a transmit power of 1.3 dBm and receiver sensitivity of -25.2 dBm can operate over a fiber link with 15 dB attenuation when a 3 dB system margin is included. The calculation is: 1.3 dBm (TX) - 15 dB (link loss) - 3 dB (margin) = -16.7 dBm Since -16.7 dBm is above the receiver sensitivity (-25.2 dBm), the module functions correctly. If the link attenuation increased beyond approximately 22 dB, the received power would fall below -25.2 dBm, causing the module to fail .

Key Takeaways

• Exceeding the loss budget leads to module failure.
• Always include a system margin when designing fiber links.
• Regularly inspect and clean connectors to minimize extrinsic losses.

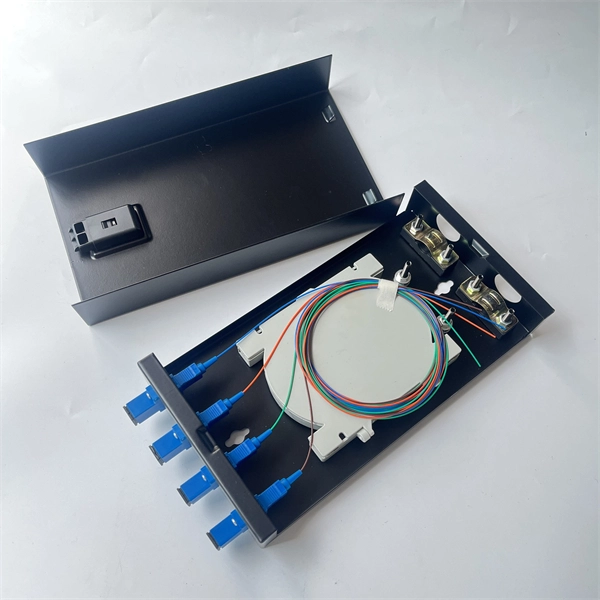

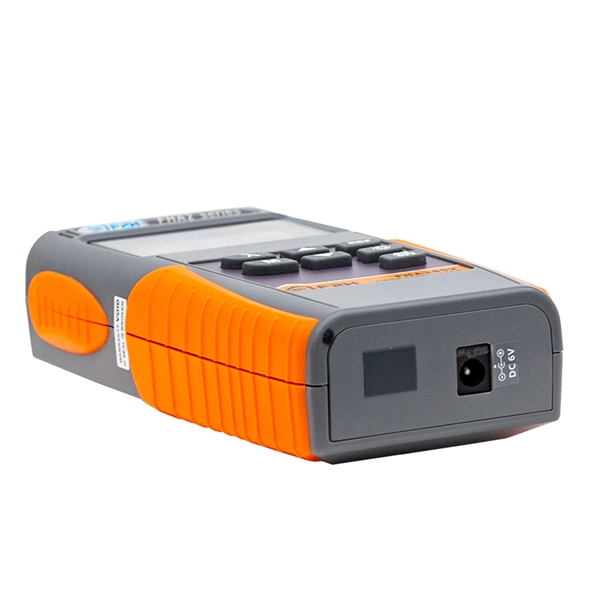

• Use optical power meters or OTDRs to measure attenuation and ensure it stays within the module's operational range . By carefully managing link attenuation and respecting module specifications, optical modules can operate reliably without failure.
