Fiber optic cables in terminal boxes are typically spliced using either fusion splicing or mechanical splicing, depending on performance requirements and installation conditions.

Fusion Splicing

Fusion splicing is the most reliable and widely used method for permanent fiber connections in terminal boxes. It involves:

• Preparation: Stripping the protective coating from the fiber, cleaning with lint-free wipes and isopropyl alcohol, and cleaving the fiber ends to create a flat, perpendicular surface .
• Alignment and Fusion: Using a fusion splicer, the fiber cores are precisely aligned, and an electric arc melts the ends to form a continuous optical path .
• Protection: The splice is enclosed in a protective sleeve or heat-shrink tube to prevent mechanical damage and maintain signal integrity . Advantages:
• Extremely low signal loss (typically <0.1 dB)
• Minimal back reflection
• High durability and long-term reliability
• Ideal for single-mode fibers and high-bandwidth applications Considerations:
• Requires specialized equipment and trained personnel
• Higher initial cost but low per-splice cost for large installations

Mechanical Splicing

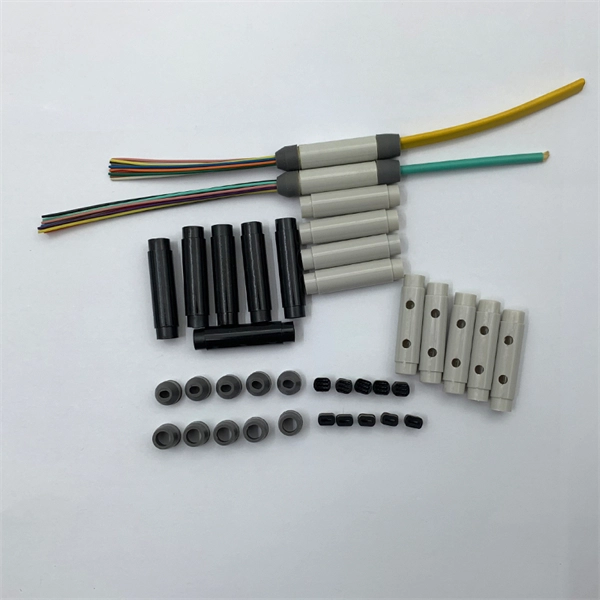

Mechanical splicing is an alternative method that aligns fiber ends within a small housing using an index-matching gel to bridge the microscopic gap . The process includes:

• Fiber Preparation: Stripping, cleaning, and cleaving the fiber ends
• Insertion: Placing the fibers into a mechanical splice holder
• Alignment: Ensuring precise core alignment using the housing and gel
• Securing: Locking the assembly with a snap-on or adhesive cover Advantages:
• Faster and easier to perform
• No need for fusion splicer or external power
• Useful for temporary connections or emergency repairs
• Can be reenterable in some designs Considerations:
• Slightly higher signal loss (typically 0.2–0.75 dB)
• Less durable over long-term use
• More suitable for multimode fibers or short-distance connections

Practical Tips for Terminal Box Splicing

• Clean Environment: Ensure the terminal box is free from dust and moisture to prevent contamination of the splice .
• Proper Fiber Management: Use fiber trays or organizers to prevent bending or stress on the spliced fibers.
• Labeling and Documentation: Clearly label each splice for future maintenance and troubleshooting.

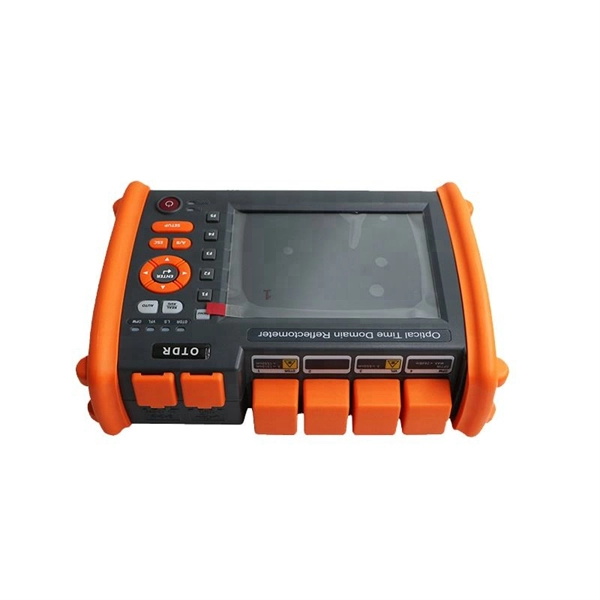

• Testing: Verify splice quality using an optical time-domain reflectometer (OTDR) or power meter to ensure low insertion loss and minimal reflection . In summary, fusion splicing is preferred for permanent, high-performance connections in terminal boxes, while mechanical splicing is suitable for quick, temporary, or lower-cost installations. Both methods require careful preparation, alignment, and protection to maintain signal integrity and network reliability.
