Proper wiring and cable management in a distribution box ensures safety, reliability, and ease of maintenance while preventing electrical hazards.

Key Principles of Wiring and Cable Management

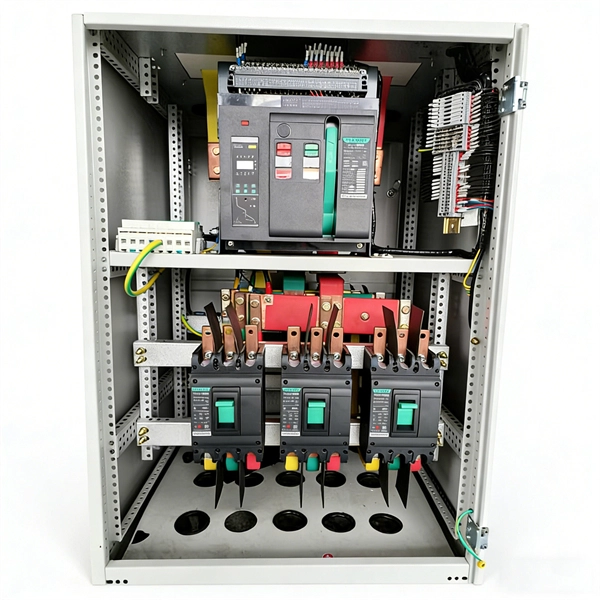

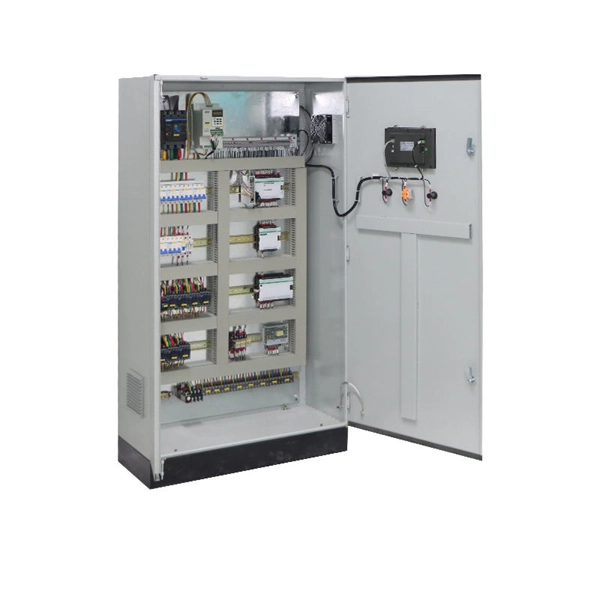

1. Planning and Preparation Before wiring, survey the installation site to ensure the box is in a dry, ventilated, and accessible location, away from flammable or corrosive substances . Determine the electrical load, circuit layout, and the number of circuits to select the appropriate distribution box size and type (residential, commercial, or industrial) . Prepare tools such as screwdrivers, wire strippers, multimeters, and insulation testers, and ensure all wires, ties, and insulating materials meet electrical standards . 2. Component Placement Inside the distribution box, organize components such as circuit breakers, fuses, terminal blocks, busbars, and isolator switches . Use DIN rails for mounting devices to keep them secure and allow modular expansion. Ensure sufficient spacing between components for heat dissipation and future maintenance . 3. Cable Routing and Securing Route wires neatly along designated paths, avoiding crossing or tangling. Use cable entry points, conduits, or cable ducts to guide wires into the box . Secure cables with cable ties or clamps to prevent movement and mechanical stress. Maintain proper bend radius to avoid damaging insulation and ensure long-term reliability . 4. Color Coding and Labeling Use standard color codes for live, neutral, and earth wires to prevent confusion during installation and maintenance . Label each circuit clearly at both the breaker and terminal ends to facilitate troubleshooting and future upgrades . 5. Safety and Compliance Ensure all connections are tight, insulated, and free from exposed conductors. Verify grounding and bonding are correctly implemented. Follow local electrical codes (NEC, IEC, or regional standards) and use certified components (UL/CE) . Perform visual inspections and multimeter tests before powering the system . 6. Maintenance Considerations Leave adequate space around the box for ventilation and easy access. Schedule regular inspections to check for loose connections, wear, or overheating. Modular designs and organized wiring simplify future upgrades or repairs .

Summary

Effective wiring and cable management in a distribution box involves careful planning, organized routing, secure fastening, proper labeling, and adherence to safety standards. Following these practices ensures a safe, reliable, and maintainable electrical system for residential, commercial, or industrial applications .
