Testing fiber optic fast connectors ensures reliable network performance by verifying low insertion loss, high return loss, and proper fiber alignment using hand-held testers and visual inspection.

Overview of Fiber Optic Fast Connectors

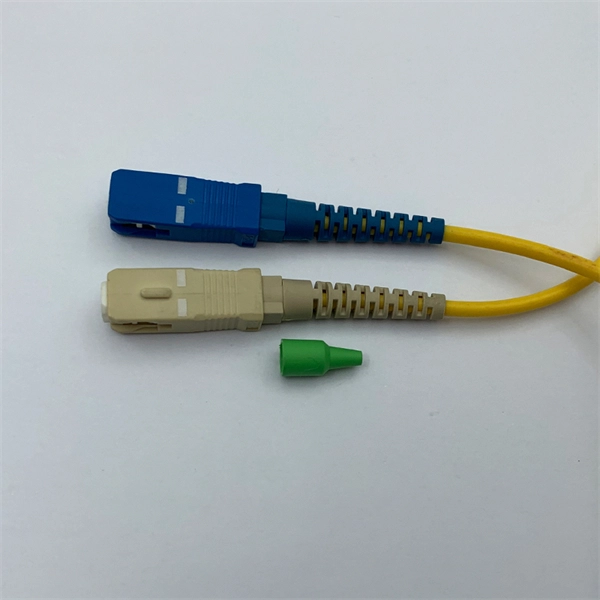

Fiber optic fast connectors, also known as quick or field-installable connectors, allow rapid termination of fiber cables without epoxy or polishing. They consist of a ferrule, mechanical splice, and housing, designed to align fibers precisely for minimal signal loss and high return loss. Proper testing is essential to confirm that these connectors meet performance standards and maintain network reliability .

Importance of Testing

Testing fast connectors is critical for:

• Quality Assurance: Detects defects or contamination that could degrade signal quality .
• Network Reliability: Ensures consistent data transmission and reduces downtime .
• Cost Efficiency: Identifies issues early, preventing expensive troubleshooting or repairs .
• Customer Satisfaction: Guarantees expected network performance .

Tools for Testing

Hand-held testers are commonly used in the field due to portability and ease of use. Key tools include:

• Optical Power Meters and Light Sources: Measure insertion loss and verify signal strength .
• Optical Time-Domain Reflectometers (OTDRs): Evaluate splices, connectors, and fiber continuity over long distances .
• Visual Fault Locators and Fiber Detectors: Identify breaks, bends, or misaligned connectors quickly .

Testing Procedure

1. Visual Inspection: Examine connector endfaces for dirt, scratches, or defects. Clean with lint-free wipes and isopropyl alcohol if necessary .
2. Prepare the Fiber: Strip the cable carefully, avoiding damage to the fiber. Use high-quality cleavers to ensure a flat, clean endface with minimal tilt (<0.5°) and no burrs .
3. Set Up Test Equipment: Connect launch and receive reference cables to the light source and power meter. Ensure all connectors and adapters are compatible and clean .
4. Measure Insertion Loss and Return Loss: Record readings for each connector. Compare against acceptable thresholds to confirm performance .
5. OTDR Testing (if applicable): For long cable runs or multiple splices, use an OTDR to verify individual splice quality and locate faults .

Best Practices

• Test every connector periodically, especially after installation or maintenance .
• Maintain clean and calibrated test equipment to ensure accurate measurements .
• Document all test results for quality control and troubleshooting purposes .
• Use hybrid adapters if connector types differ between test equipment and the cable plant . By following these procedures and using appropriate hand-held testers, technicians can ensure that fiber optic fast connectors provide reliable, high-performance connections in optical networks .
