The gain value of an optical attenuator, usually expressed in decibels (dB), represents the reduction of optical power, with negative gain indicating attenuation.

Understanding Gain in Optical Attenuators

In optical systems, gain is the ratio of output power to input power. For an attenuator, this ratio is less than one, meaning the device reduces the signal. The gain is often expressed in decibels (dB) using the formula: Gain (dB) = 10 × log₁₀(P_out / P_in) where P_in is the input optical power and P_out is the output power. Since an attenuator reduces power, the gain value is negative, which is equivalent to the attenuation level. For example, a gain of -3 dB means the output power is approximately half of the input power, while -10 dB corresponds to a tenfold reduction in power .

Practical Interpretation

• Fixed Attenuators: Provide a constant reduction in optical power. The gain value directly indicates how much the signal is reduced. For instance, a -5 dB fixed attenuator reduces the input power by a factor of about 3.16.

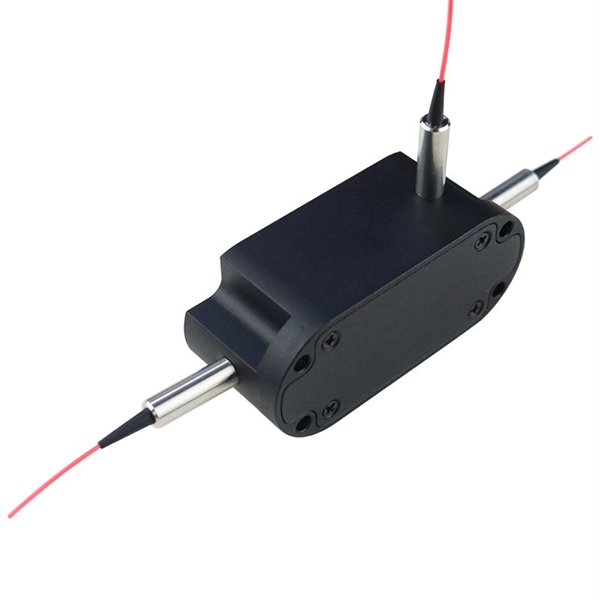

• Variable Optical Attenuators (VOAs): Allow adjustable attenuation, often from 0 dB (no loss) to tens of dB. The gain value at any setting tells you the current reduction applied to the signal .
• System Design: Knowing the gain (attenuation) is crucial to prevent receiver overload or signal distortion. For example, if a receiver can handle a maximum of -6 dBm and the transmitter outputs 3 dBm with 5 dB fiber loss, the minimum attenuator required is calculated as: Minimum attenuation = Receiver max input + Fiber loss – Transmitter output = -6 dBm + 5 dB – 3 dBm = -4 dB .

Key Points

• Negative gain = attenuation; the more negative, the greater the power reduction.
• Decibel scale is logarithmic, so gains/attenuations in series can be added algebraically.
• Accuracy and wavelength dependence matter: the actual attenuation may vary slightly with wavelength or temperature, especially in mechanical or MEMS-based VOAs .
• Application: Use the gain value to adjust optical power within the optimal range for receivers, balance channels in WDM systems, or perform system testing. By interpreting the gain value correctly, engineers can ensure safe, efficient, and balanced optical signal levels across communication links.
