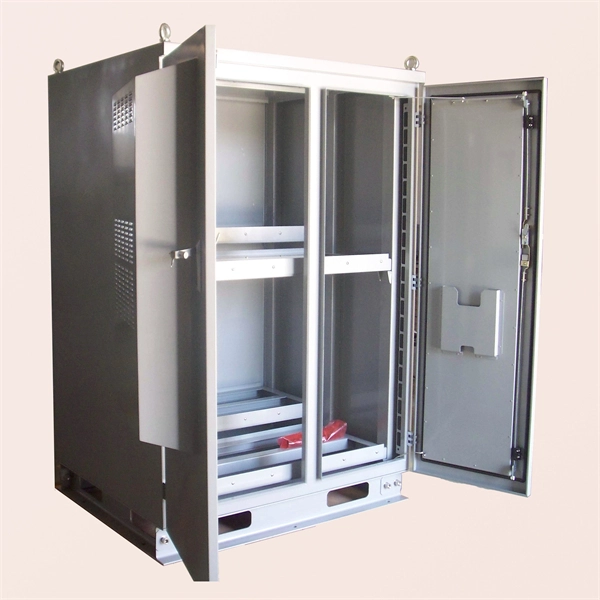

Use a copper grounding wire sized according to local standards, connected securely to a grounding rod or grid, ensuring low resistance and corrosion resistance.

Wire Material and Size

For outdoor distribution boxes, copper is the preferred material for grounding wires, especially for buried runs, because aluminum corrodes over time and loses conductivity . In the US, a 10 AWG (5.26 mm²) copper wire is typically used for standard grounding, while larger installations or connections to multiple spindles may require 6 AWG (13.29 mm²) or 16 mm² wires to maintain low resistance . Internationally, a 6 mm² copper wire is commonly specified .

Installation Method

1. Connect to the Box: Attach one end of the grounding wire to a metal part of the distribution box, such as a threaded stud or mounting plate, ensuring a large contact area for reliable conductivity .
2. Connect to Ground Rod or Grid: The other end should be connected to a ground rod driven into the earth or to a station grounding grid if available . For multiple rods, spacing of about 50 feet apart is recommended to reduce resistance .
3. Bonding: If the box is mounted on a metal plate or structure, a second wire may be used to bond the mounting plate to the central grounding point, ensuring the total resistance between all system parts is less than 0.1 ohm .

Testing and Maintenance

• Measure Ground Resistance: Use a voltmeter or ground resistance tester to ensure the resistance meets safety standards. If resistance is too high, consider relocating the rod or adding additional rods .
• Regular Inspection: Check connections periodically for corrosion or loosening, especially in outdoor environments where moisture and soil conditions can degrade contacts .

Additional Considerations

• Avoid Aluminum Underground: Only copper should be used for buried grounding wires to prevent corrosion .
• Quality Materials: Use certified copper with proper purity to ensure long-term reliability .
• Compliance: Follow local electrical codes and standards for grounding, including any specific requirements for outdoor distribution boxes or high-voltage equipment . By following these guidelines, your outdoor distribution box will have a safe, low-resistance grounding system that protects both equipment and personnel from electrical faults and surges.
