To connect a fiber optic migration cable to a network switch, use compatible SFP transceivers, duplex LC fiber cables, and configure the switch ports and VLANs appropriately.

Step 1: Select the Correct SFP Transceiver

Choose an SFP module that matches the fiber type (single-mode OS2 or multimode OM3) and the bandwidth of your switch (1G SFP, 10G SFP+, or QSFP for higher speeds) to ensure proper signal transmission . Ensure the transceiver is compatible with your switch model to avoid unpredictable behavior .

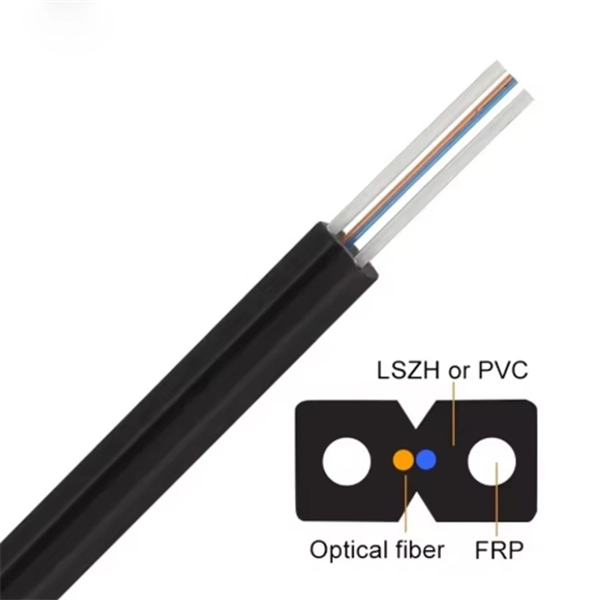

Step 2: Prepare the Fiber Optic Cable

Use duplex fiber optic cabling with LC connectors on both ends. Pre-terminated cables are recommended for simplicity, but bulk fiber can be terminated in the field if necessary . When connecting two switches, reverse the connections between the SFP ports (TX of switch A to RX of switch B and vice versa) to maintain proper send/receive alignment .

Step 3: Connect the Fiber to the Switch

Insert the SFP transceiver into the fiber-enabled port on the switch. Connect the LC connectors of the duplex fiber cable to the transceiver, ensuring a secure and clean connection. Avoid bending the fiber sharply to prevent signal loss .

Step 4: Configure the Switch Ports

Log into the switch using a terminal client (e.g., PuTTY) and configure the fiber-enabled ports for the correct speed and duplex mode. If required, assign the ports to a VLAN dedicated to the fiber connection to separate traffic and optimize network performance . Example commands on a Cisco switch:

interface GigabitEthernet1/0/1switchport mode accessswitchport access vlan 10speed 1000duplex fullno shutdown

Step 5: Verify and Save Configuration

After connecting the fiber and configuring the ports, verify the link status using commands like show interfaces status or show interface transceiver details. Ensure the link is up and there are no errors. Finally, save the configuration to the switch memory:

copy running-config startup-config

This ensures the settings persist after a reboot .

Step 6: Troubleshooting Tips

• Confirm fiber type compatibility between switches and transceivers .
• Check for clean connectors; dust or dirt can degrade performance.
• Ensure TX/RX alignment is correct; reversed connections prevent communication .
• Use original manufacturer SFPs to avoid unpredictable behavior . By following these steps, your fiber optic migration cable will be properly connected, and the switch will be configured for reliable high-speed communication.
